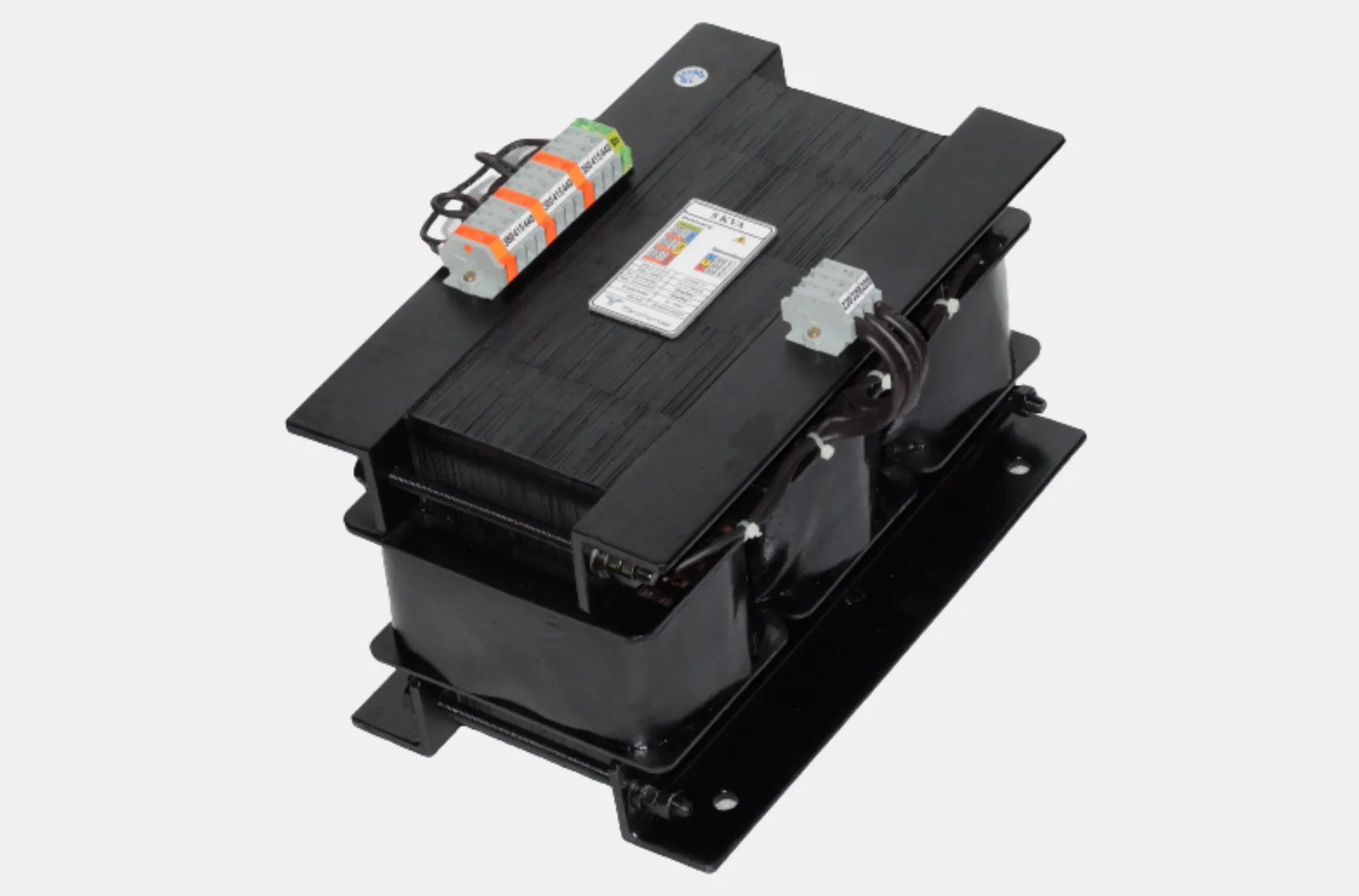

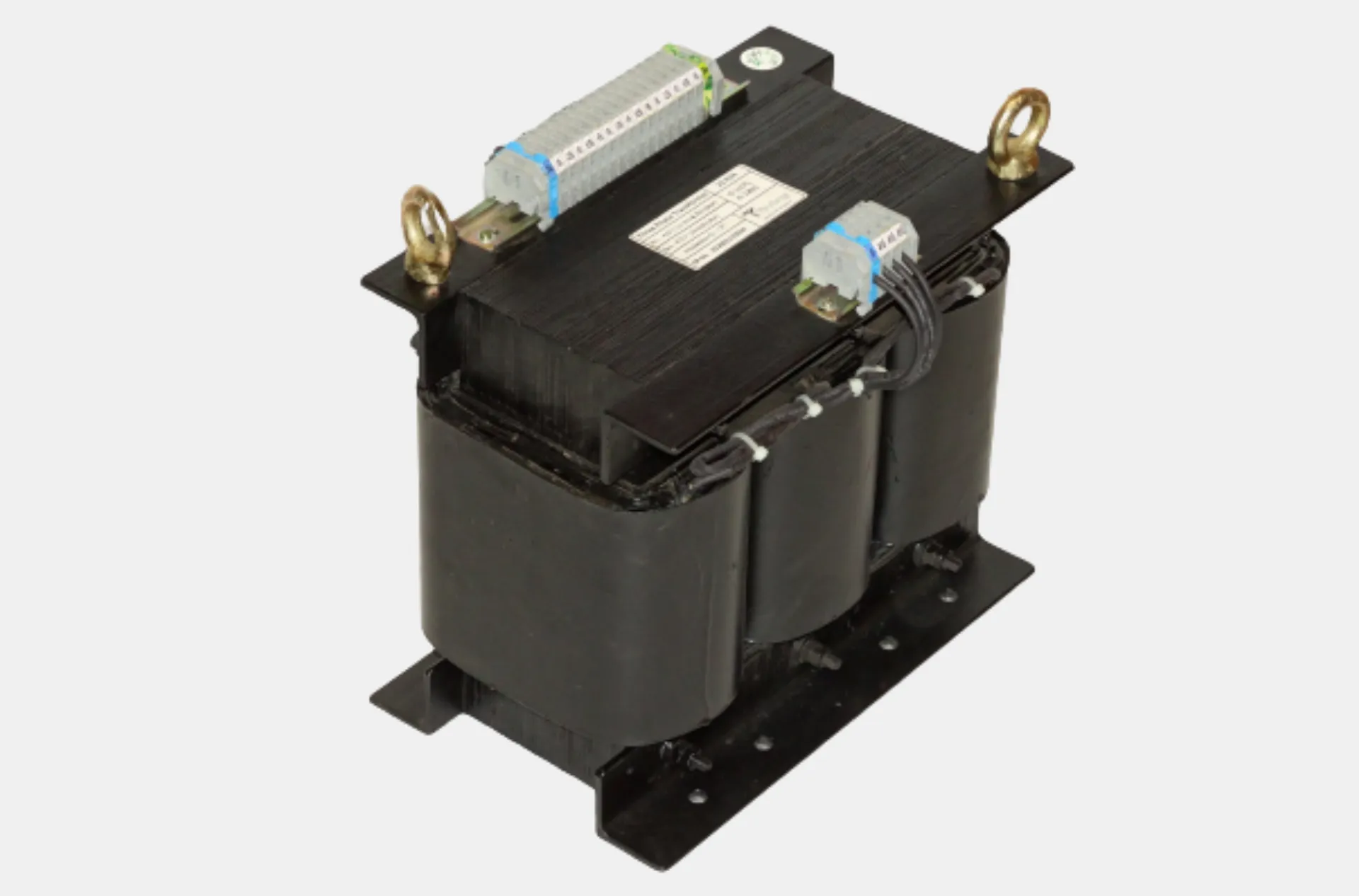

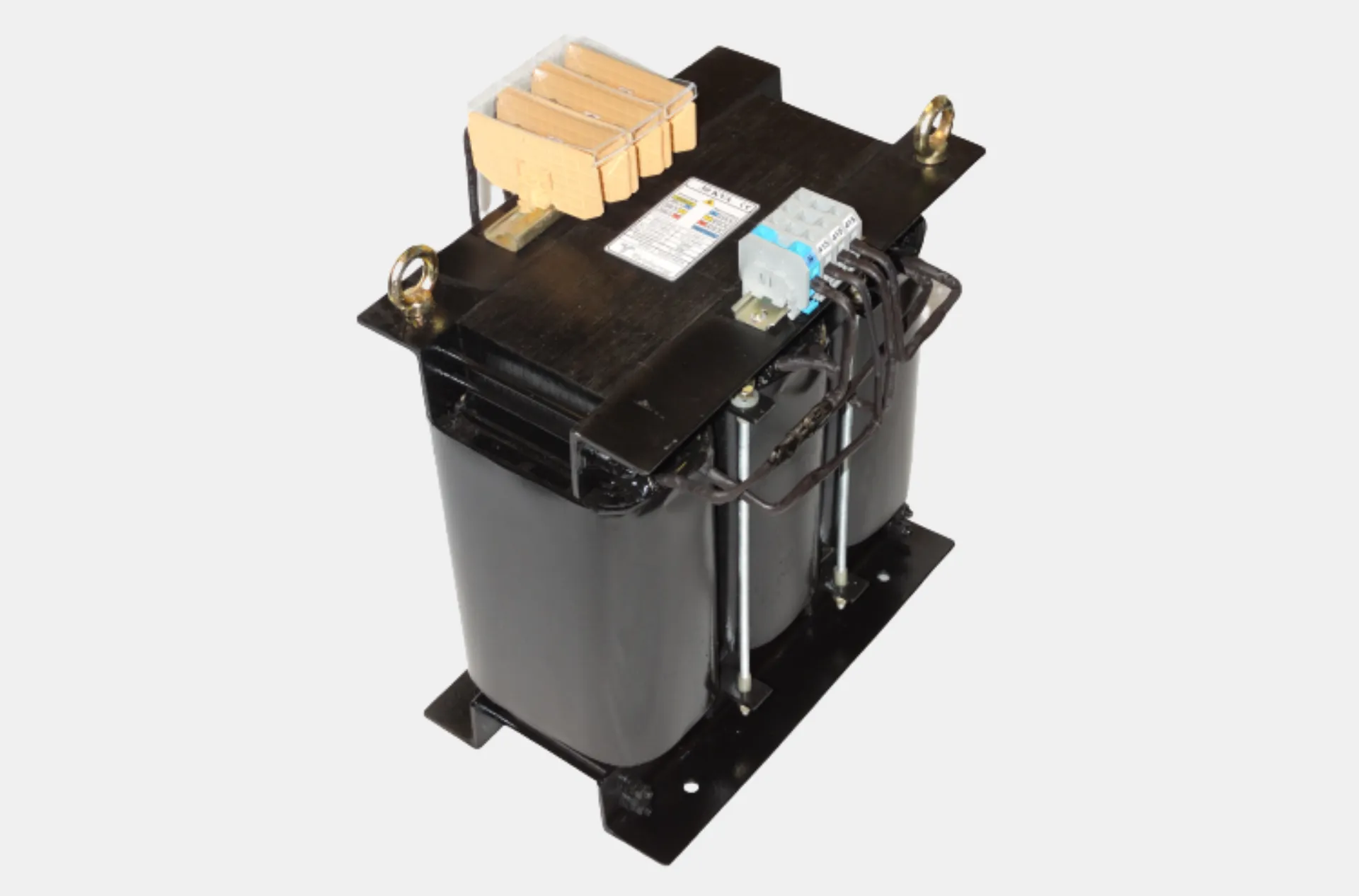

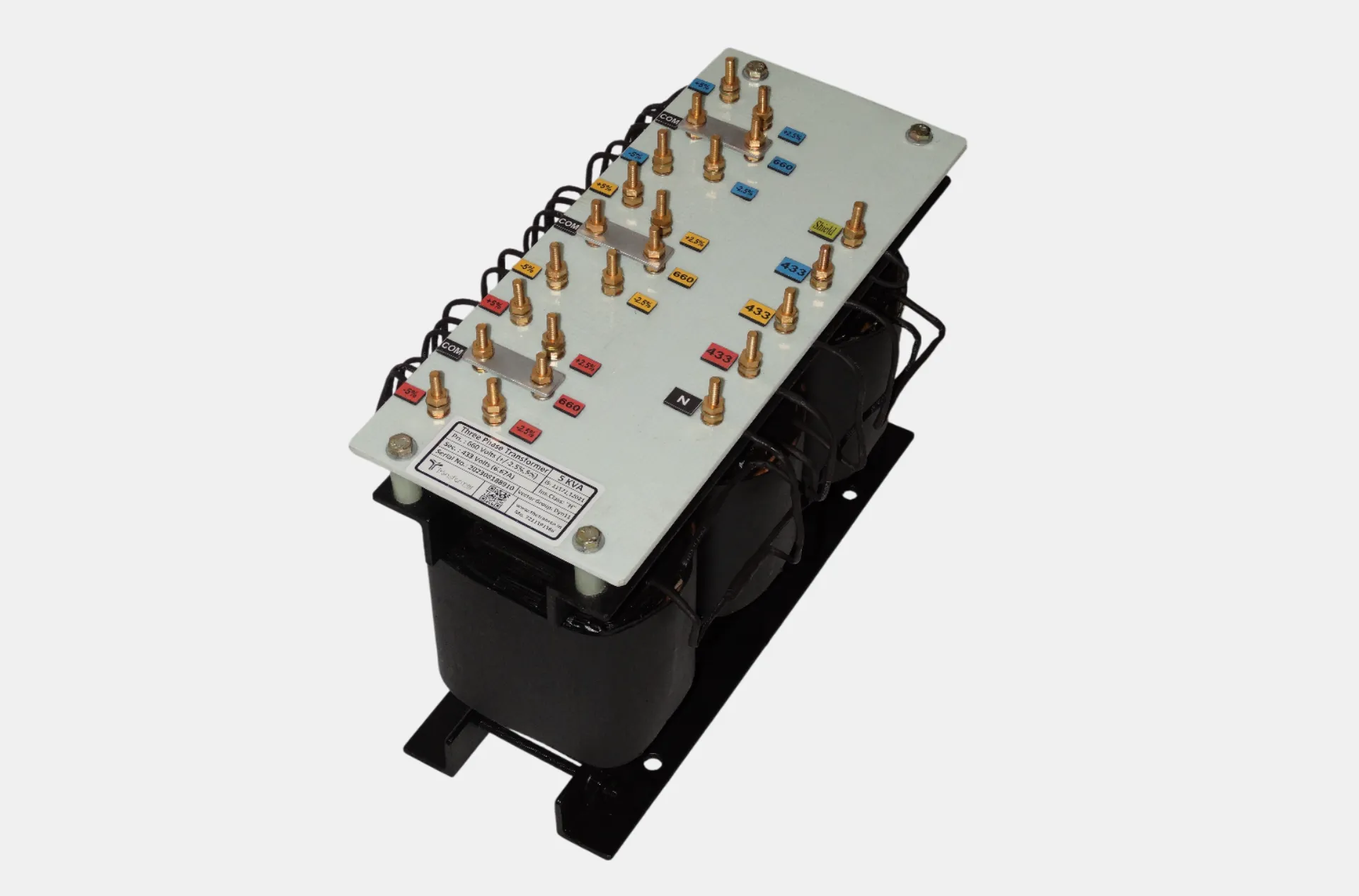

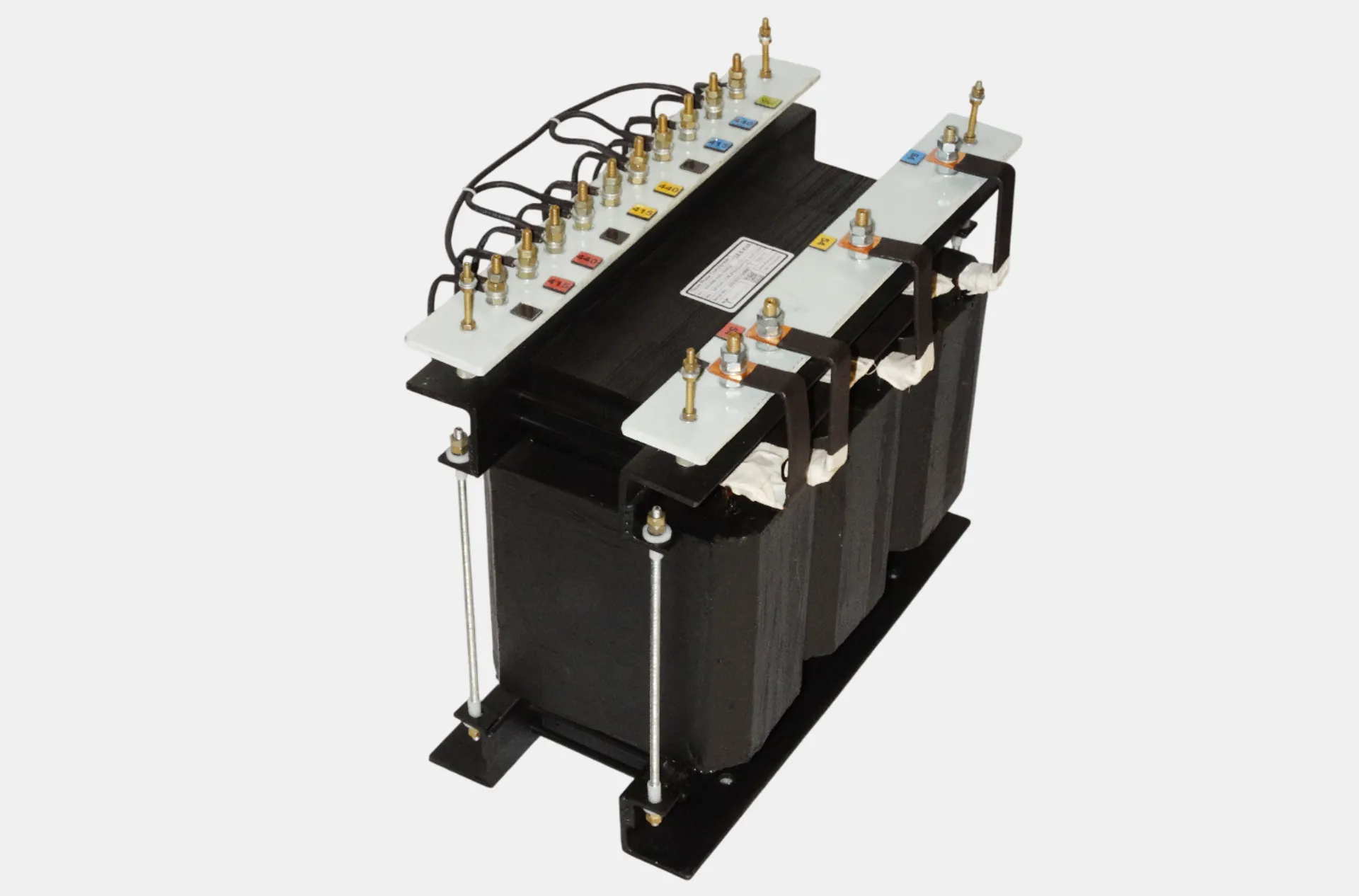

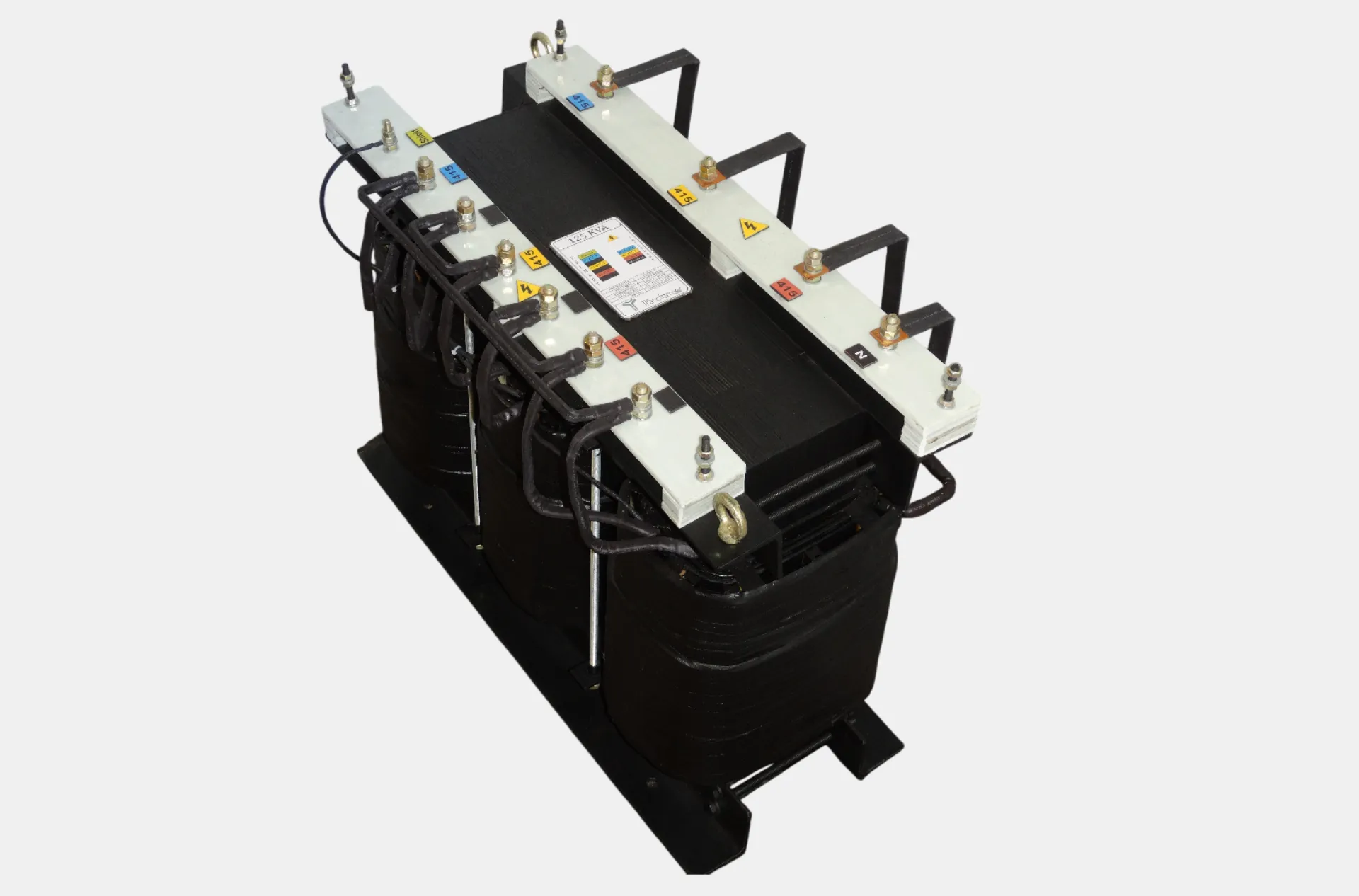

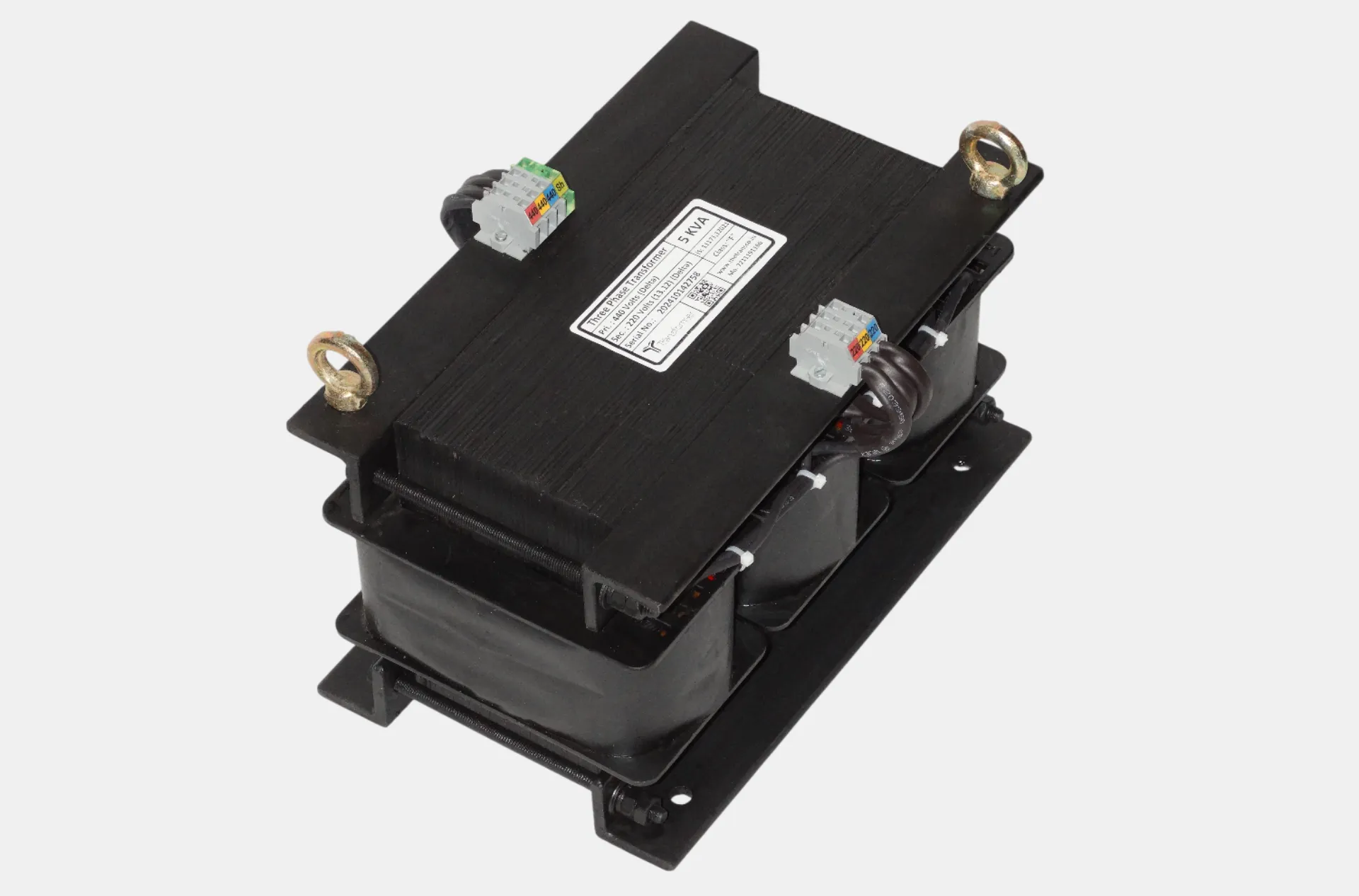

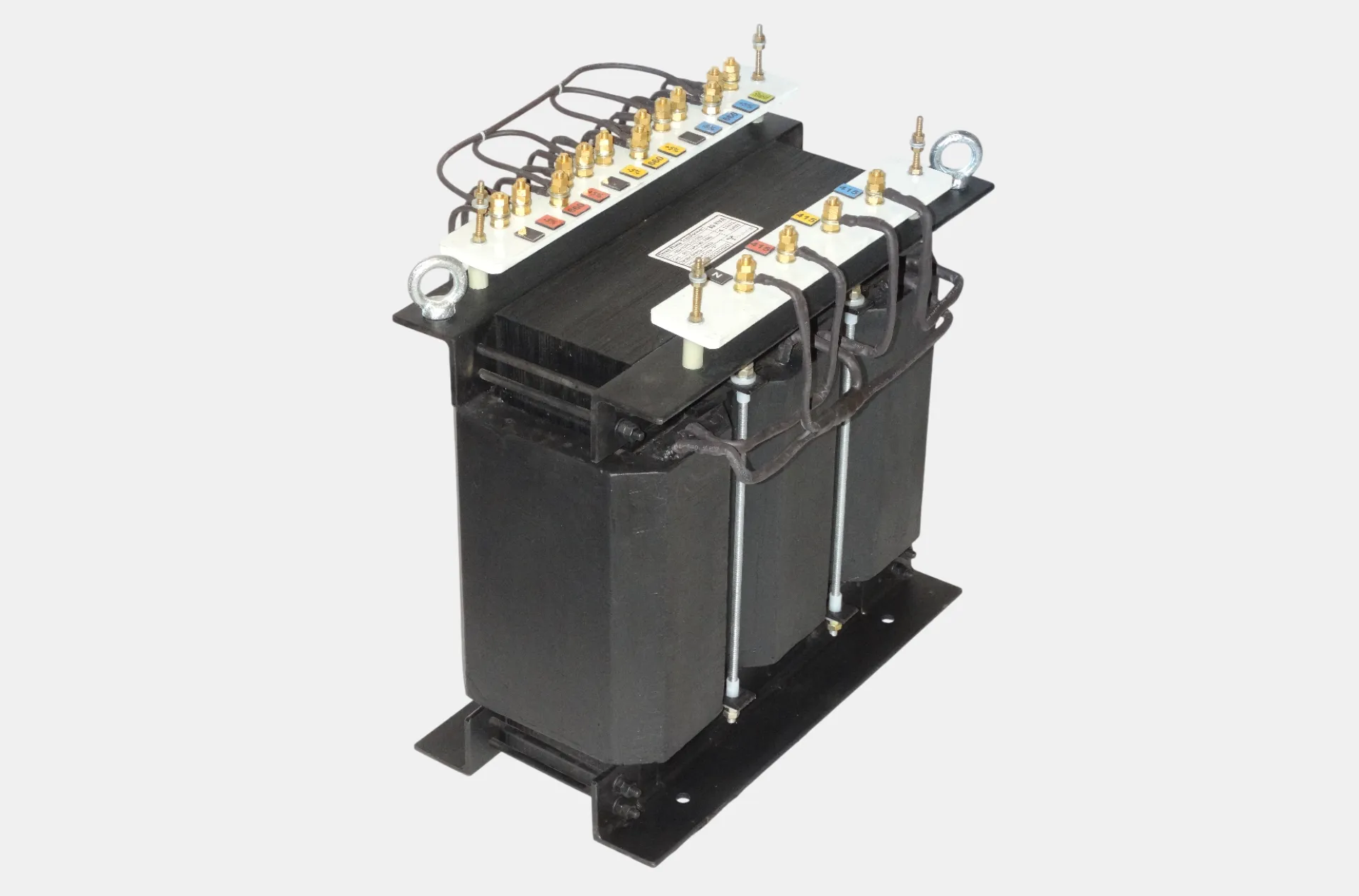

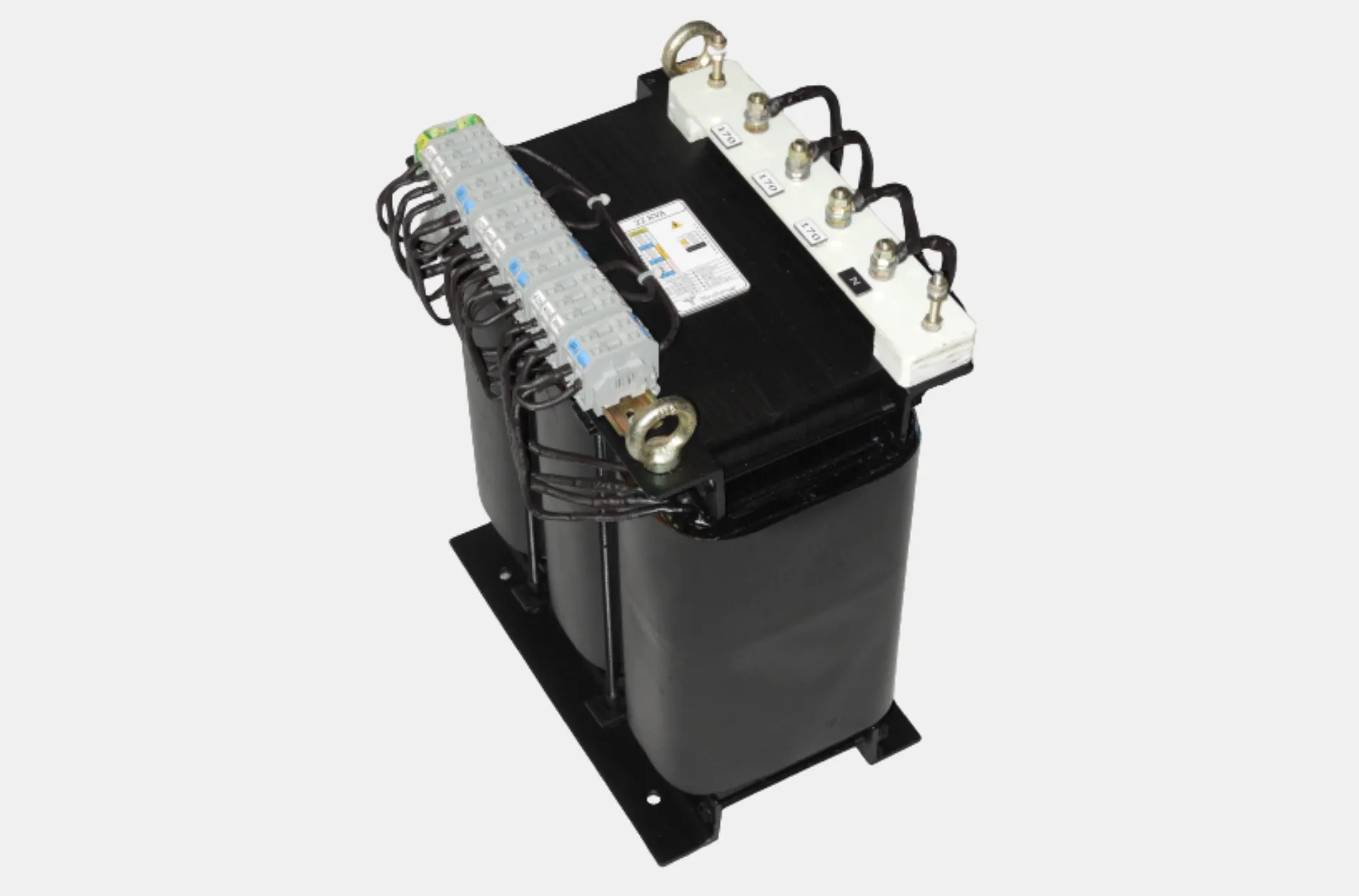

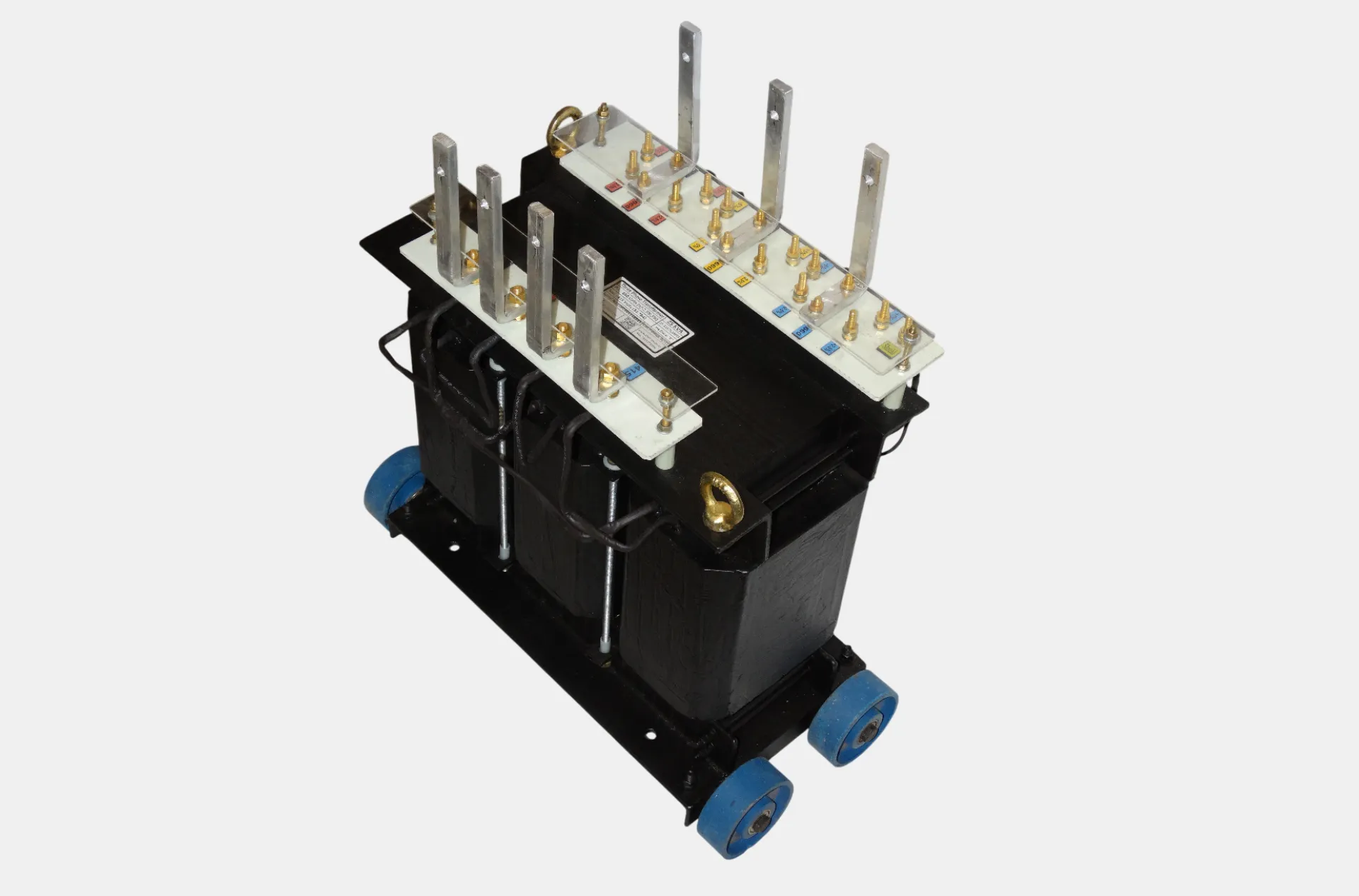

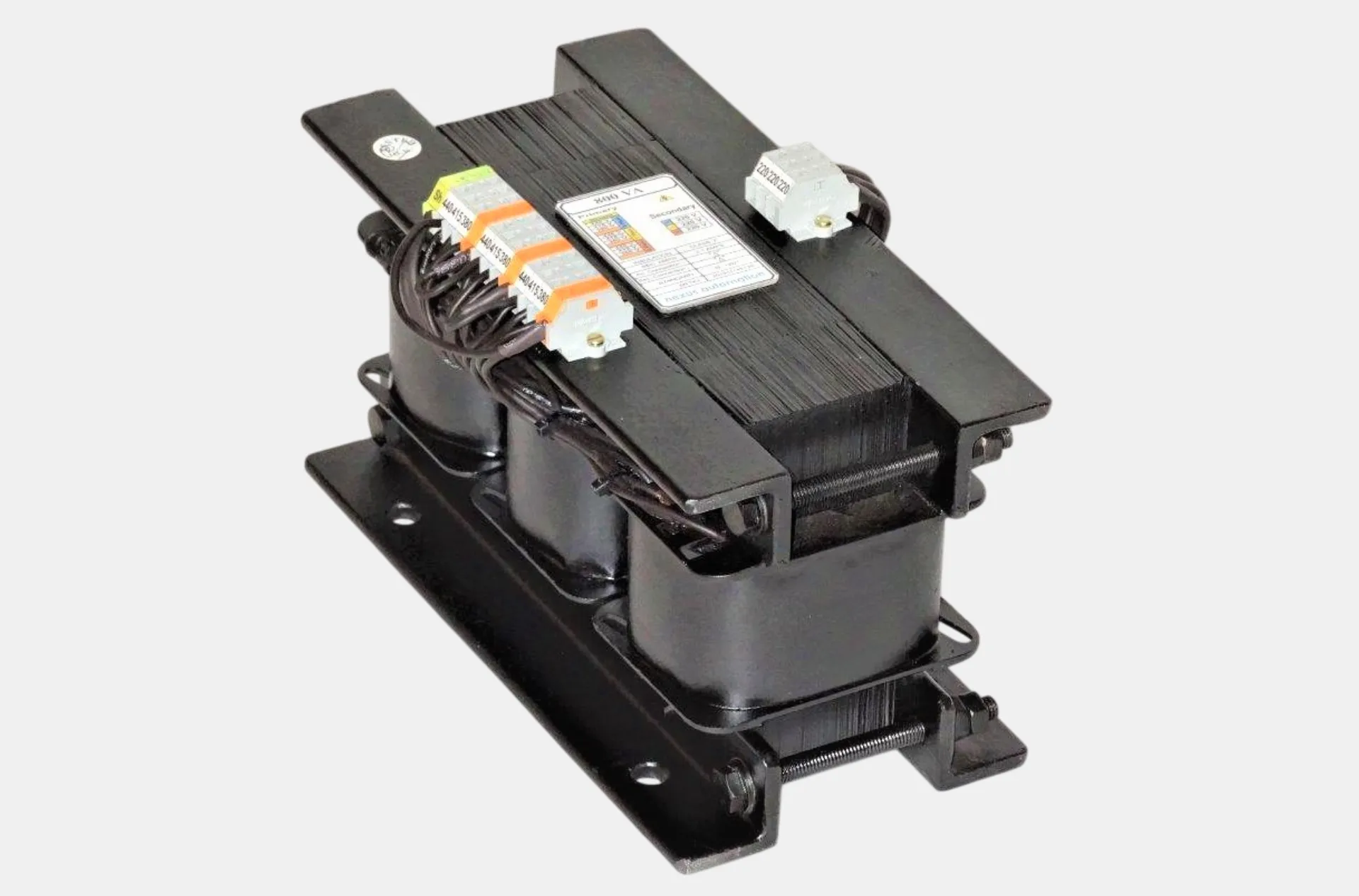

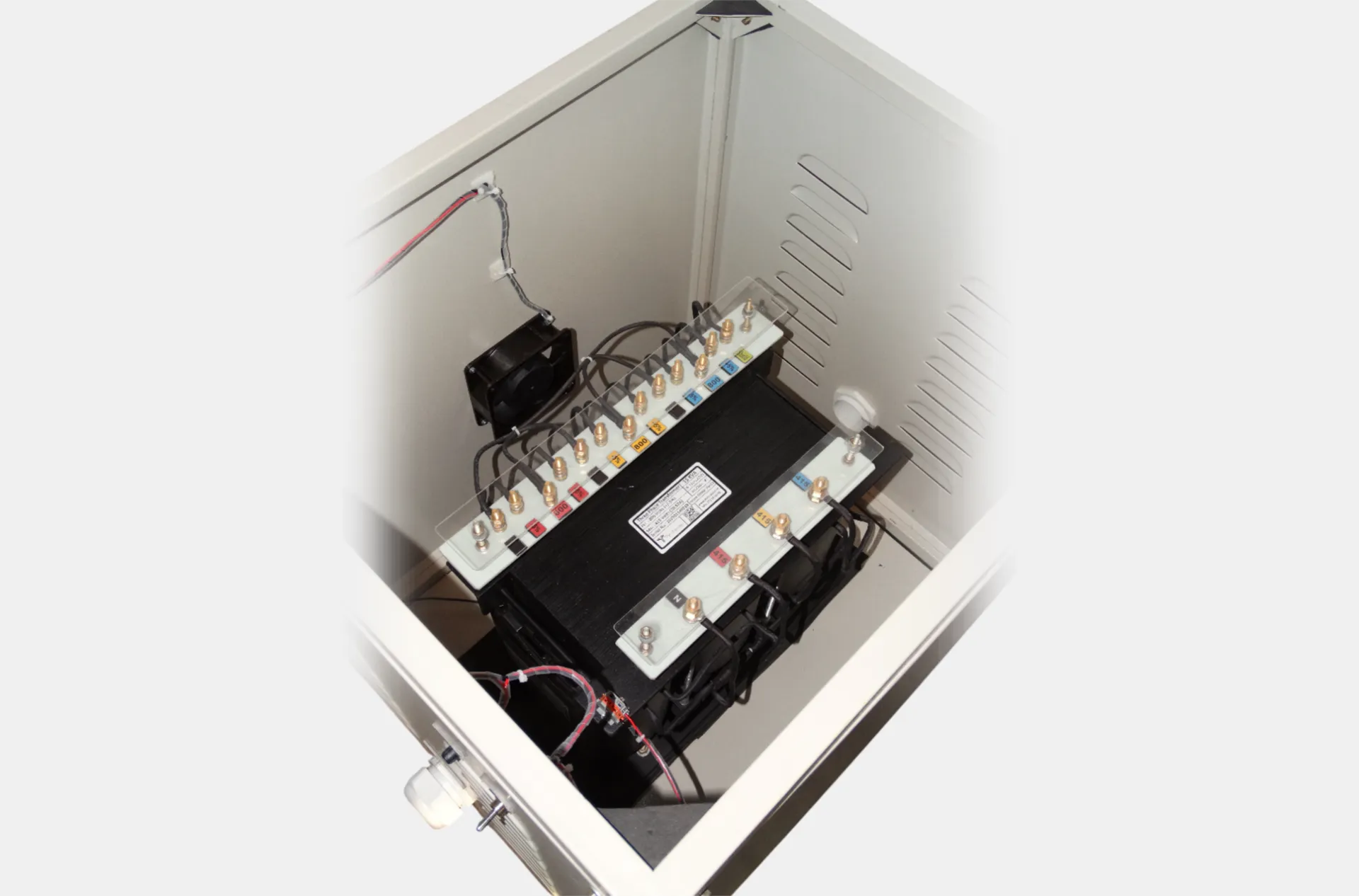

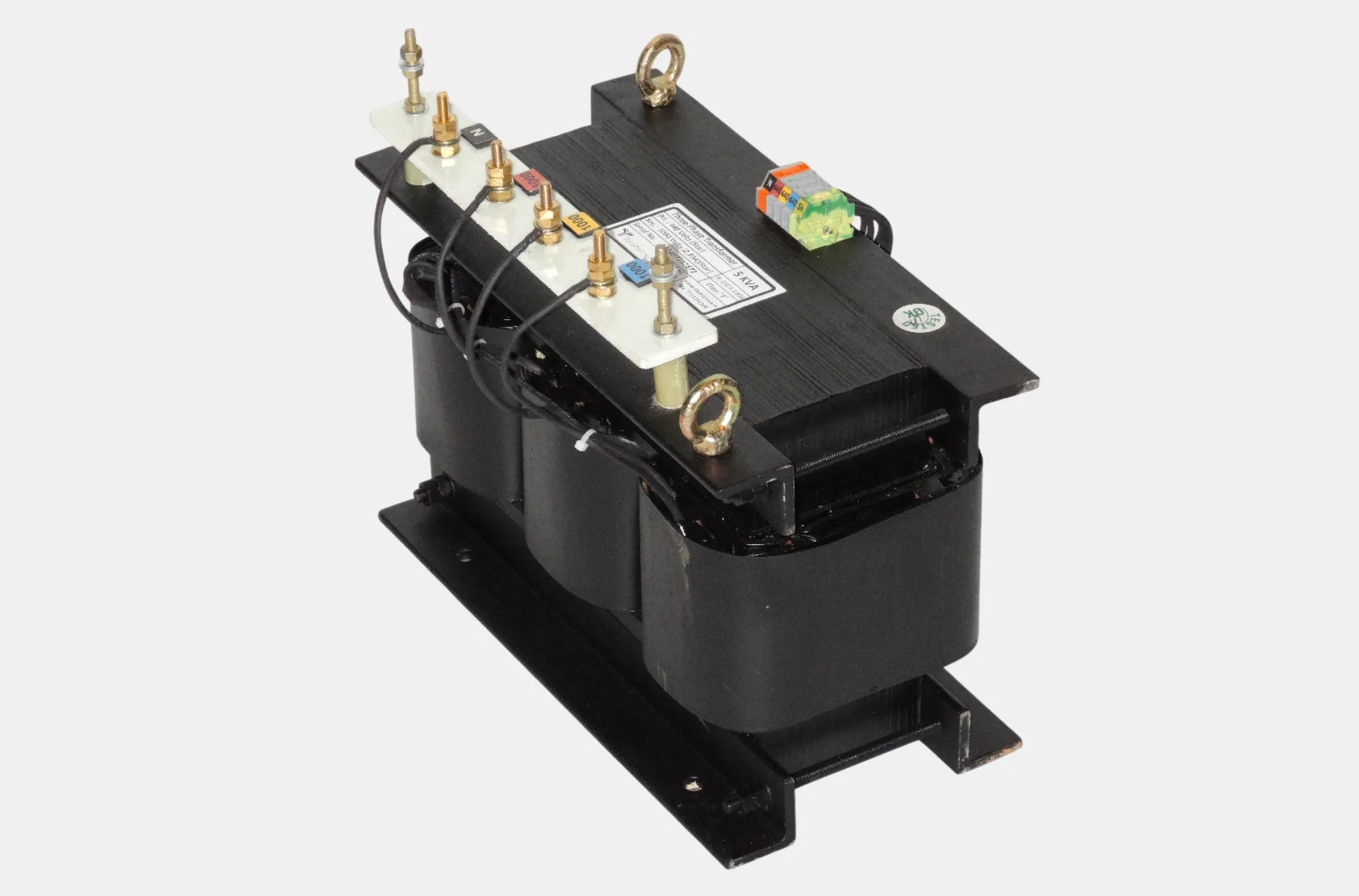

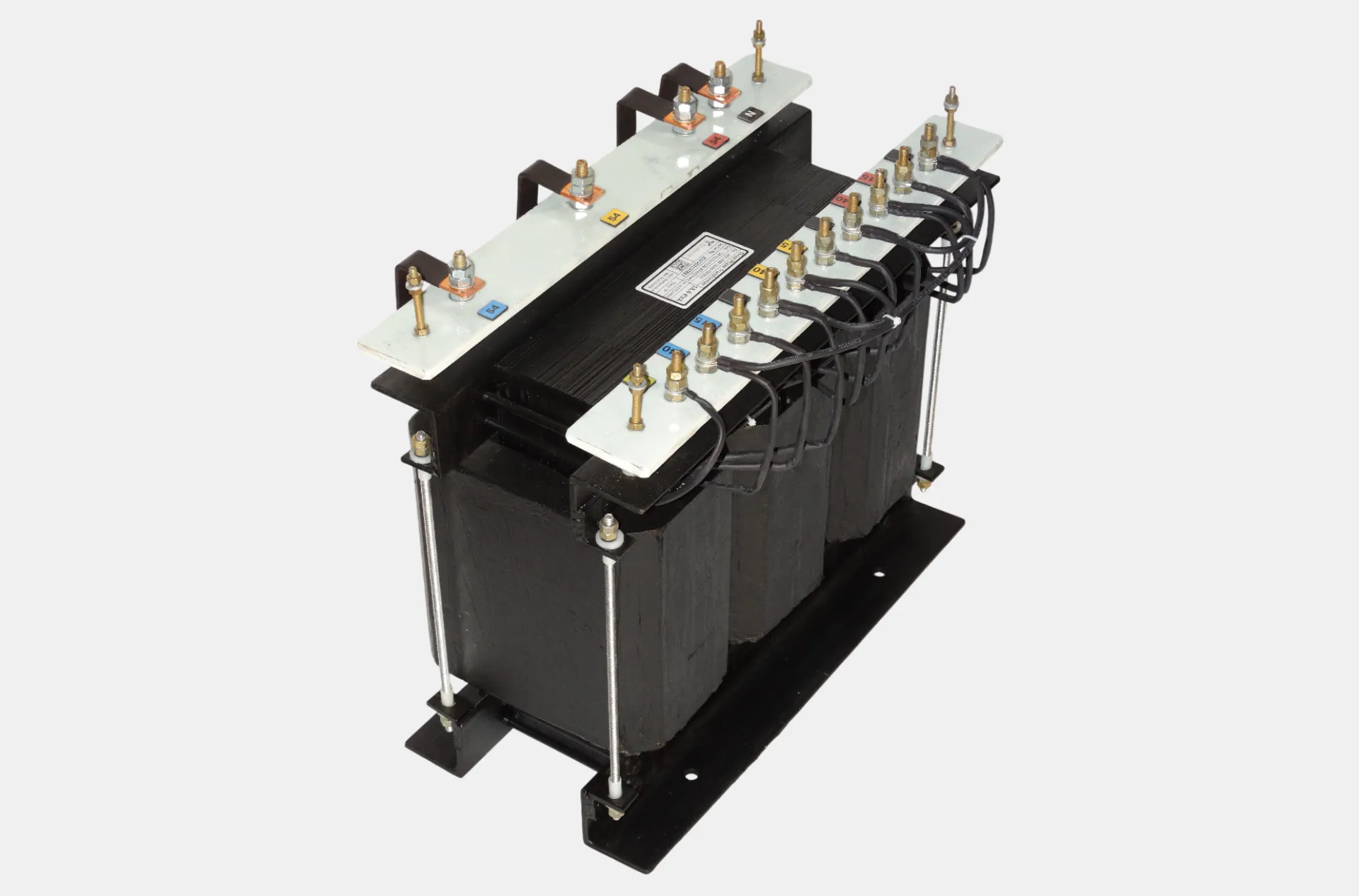

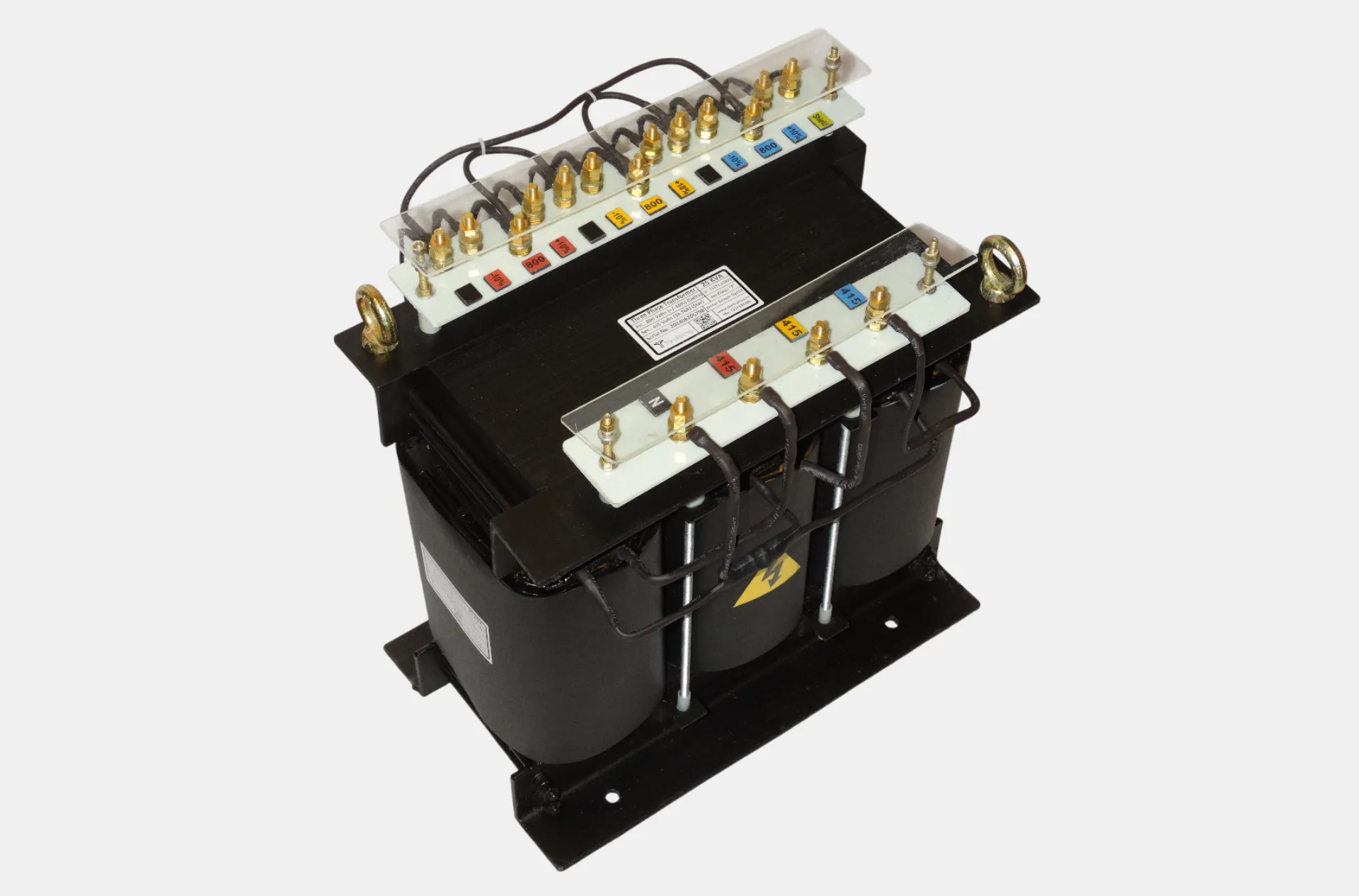

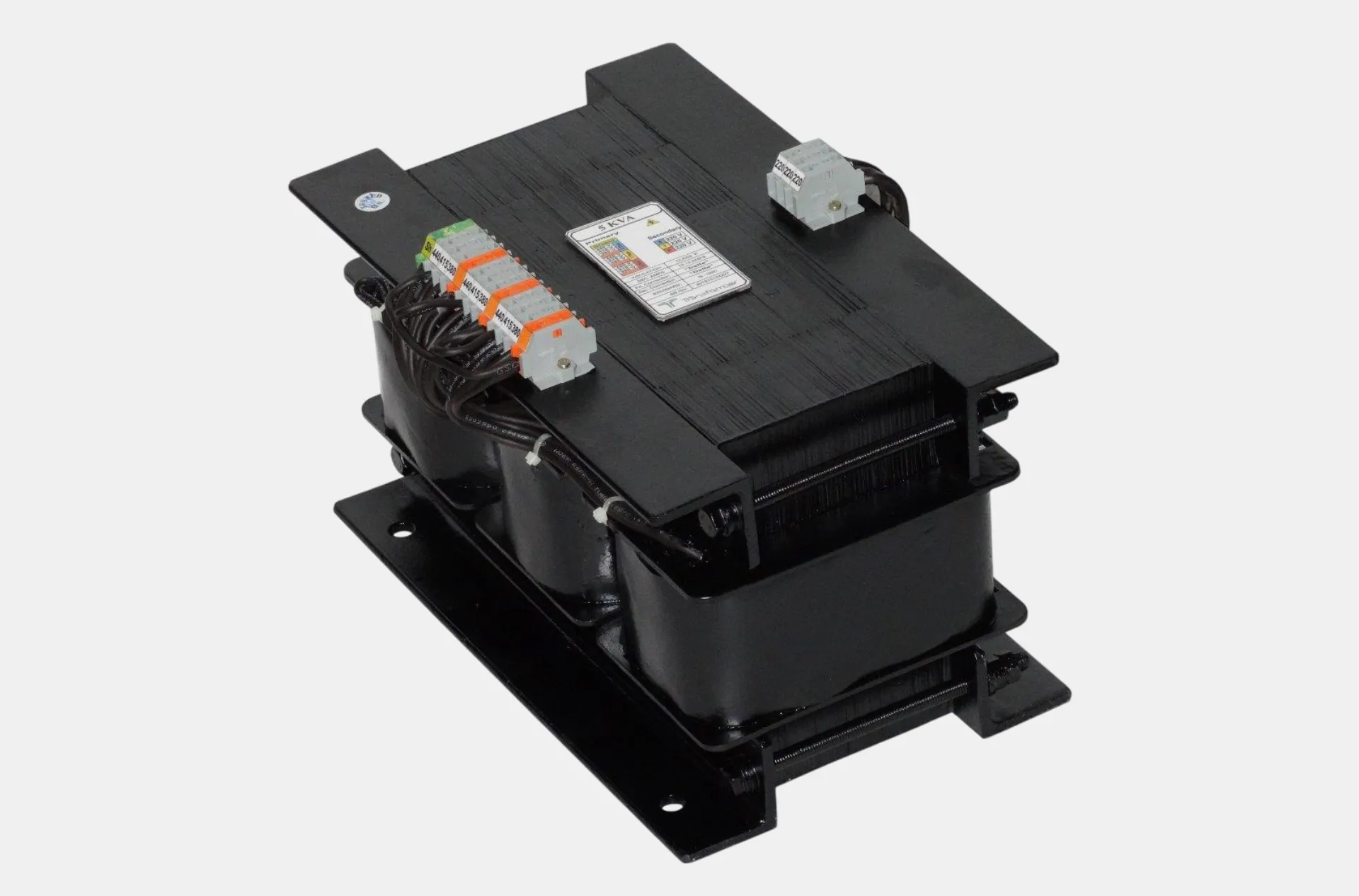

These Transformers converts voltages to the required level machine tool control devices enabling control circuits to be isolated from all power and lighting circuits.This allows the use of grounded or ungrounded circuits that are independent of the power or lighting grounds; greater safety is afforded the operator. The control transformer line is particularly adaptable on applications where compact construction is demanded.
Built to meet a range of application requirements Our industrial transformers are specially designed to accommodate the momentary current inrush caused when electromagnetic components are energized.
These transformers deliver excellent secondary voltage requirements and meet or exceed the standards established. Their rugged construction and excellent electrical characteristics ensure reliable operation of electromagnetic devices and trouble-free performance.
Enclosed coils completely enclose the transformer coils against moisture, dirt, dust and industrial contaminants for maximum protection in industrial environments.
Finger-safe terminals provide a great terminal contact area which permits low-loss connections. Extra deep barriers reduce the chance of shorts from frayed leads or careless wiring.
Mounting clamps are made of heavy steel to add strength to core construction and provide stability. Slotted mounting feet permit easy and flexible installation.
Attractive epoxy coated black matte finish, easy-to-read label with complete technical details.
A shield comes as standard which provides for better harmonic and other electrical noise mitigation.
VA Capacity: 15 VA - 150 KVA
Current Capacity: From Milliamps to 1000 Amps
Vector Group: As Per The Requirement
Conductor Type: Copper, Aluminium
Conductor Covering Type:
Enamelled 'F' Class, Enamelled 'H' Class, Paper Covered, Fiber Glass Covered, Enamelled Conductor Covered in Fiber Glass
Core Type: Cold Rolled Grain Oriented (CRGO) Laminated Silicon Steel
Varnishing Type: Vacuum Pressure Impregnated and Epoxy Coated
Terminal Type: Wago, Phoenix, Brass Bolts
Clamping: Solid Angles and 'C' Channel
Clamping Bolts: High Tensile Bolts
